المكونات الاساسية :
- Arduino UNO R3

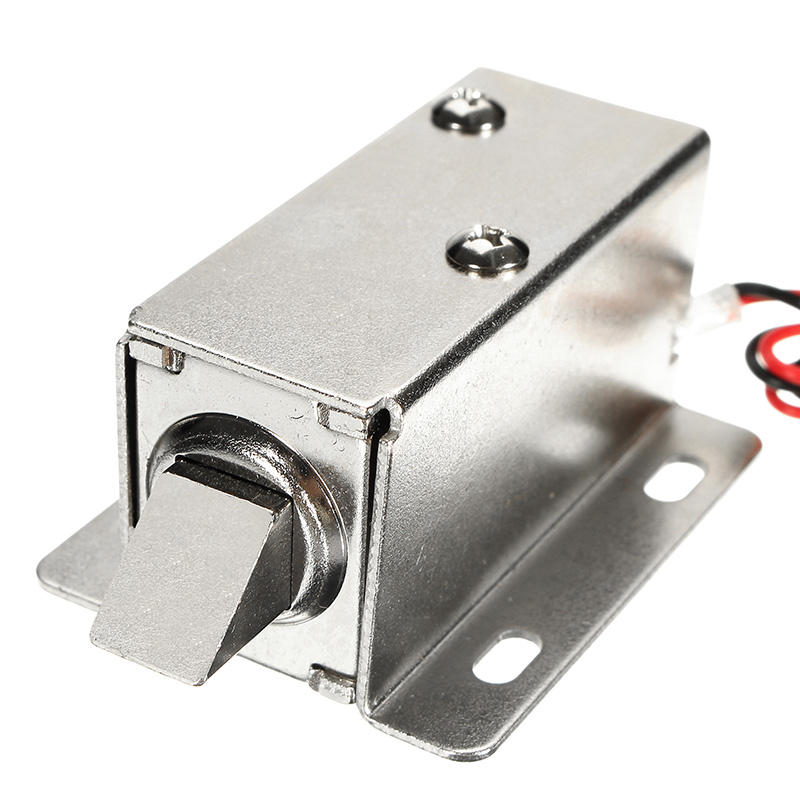

- Solenoid Lock
- 4x4 Keypad
- Relay Module
- Jumper wires
++ مخطط الرسم البياني :
++ الكود البرمجي هنا :
#include <Keypad.h>
char* password = "123"; // change the password here, just pick any 3 numbers
int position = 0;
const byte ROWS = 4;
const byte COLS = 4;
char keys[ROWS][COLS] = {
{'1','2','3','A'},
{'4','5','6','B'},
{'7','8','9','C'},
{'*','0','#','D'}
};
byte rowPins[ROWS] = { 9, 8, 7, 6 };
byte colPins[COLS] = { 5, 4, 3, 2 };
Keypad keypad = Keypad( makeKeymap(keys), rowPins, colPins, ROWS, COLS );
int Lock = 13;
void setup()
{
pinMode(Lock, OUTPUT);
LockedPosition(true);
}
void loop()
{
char key = keypad.getKey();
if (key == '*' || key == '#')
{
position = 0;
LockedPosition(true);
}
if (key == password[position])
{
position ++;
}
if (position == 3)
{
LockedPosition(false);
}
delay(100);
}
void LockedPosition(int locked)
{
if (locked)
{
digitalWrite(Lock, LOW);
}
else
{
digitalWrite(Lock, HIGH);
}
}
