المكونات الاساسية :
- Arduino UNO R3

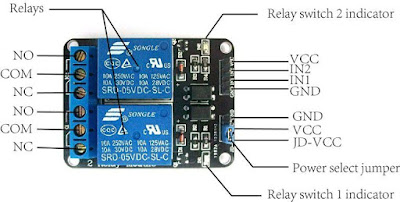

- Relay Board 2 Channel

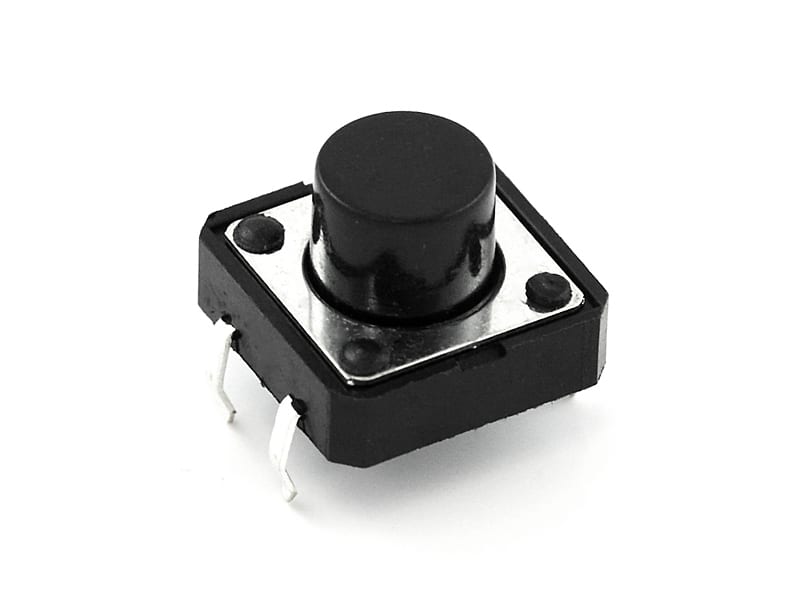

- Push Button
- lamp 220v
- BreadBoard
- Jumper wires
++ مخطط الرسم البياني :
++ الكود البرمجي هنا :
int pbuttonPin = 2;
int relayPin = 10;
int pbuttonPin2 = 3;
int relayPin2 = 11;
int val = 0;
int lightON = 0;
int pushed = 0;
int val2 = 0;
int lightON2 = 0;
int pushed2 = 0;
void setup() {
Serial.begin(9600);
pinMode(pbuttonPin, INPUT_PULLUP);
pinMode(relayPin, OUTPUT);
pinMode(pbuttonPin2, INPUT_PULLUP);
pinMode(relayPin2, OUTPUT);
}
void loop() {
val = digitalRead(pbuttonPin);
val2 = digitalRead(pbuttonPin2);
//Relay 1
if(val == HIGH && lightON == LOW){
pushed = 1-pushed;
delay(100);
}
lightON = val;
if(pushed == HIGH){
Serial.println("Light ON");
digitalWrite(relayPin, LOW);
}else{
Serial.println("Light OFF");
digitalWrite(relayPin, HIGH);
}
//Relay 2
if(val2 == HIGH && lightON2 == LOW){
pushed2 = 1-pushed2;
delay(100);
}
lightON2 = val2;
if(pushed2 == HIGH){
Serial.println("Light ON");
digitalWrite(relayPin2, LOW);
}else{
Serial.println("Light OFF");
digitalWrite(relayPin2, HIGH);
}
delay(100);
}
#arduino #raspberrypi #electronics #arduinoproject #robotics #technology #engineering #arduinouno #robot #iot #diy #electrical #maker #programming #electronic #microcontroller #arduinoprojects #tech #esp #pcb #arduinomega #d #electricalengineering #robotica #diyelectronics #project #coding #arduinofun #sensor
