تشغيل LED على شكل مستوى متقدم ▐ LED Chaser with Nodemcu ESP8266 Basic to Advanced level



- المكونات الاساسية :

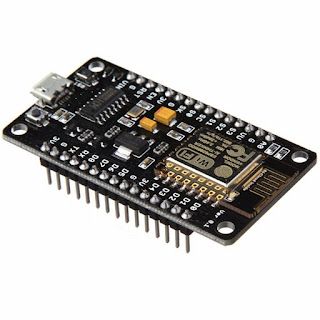

- esp8266 nodemcu

-   LED 5MM

- Breadboard

- Jumper wires

-  مخطط الرسم البياني :

- كود أردوينو :

// Led Chaser with NodeMCU(ESP8266) Basic to Advance level

// By : DIY Channel

// My YouTube Channel : https://www.youtube.com/c/DIYChannel2019

#define led_one  12

#define led_two 14

#define led_three 2

int Delay = 300;

void setup() {

  pinMode(led_one, OUTPUT);

  pinMode(led_two, OUTPUT);

  pinMode(led_three, OUTPUT);

  // put your setup code here, to run once:

}

void loop() {

  LedChaser(1,0,0);

  delay(Delay);

  LedChaser(0,1,0);

  delay(Delay);

  LedChaser(0,0,1);

  delay(Delay);





  // put your main code here, to run repeatedly:

}

void LedChaser(int i, int j, int k)

{

  digitalWrite(led_one, i);

  digitalWrite(led_two, j);

  digitalWrite(led_three, k);

}
