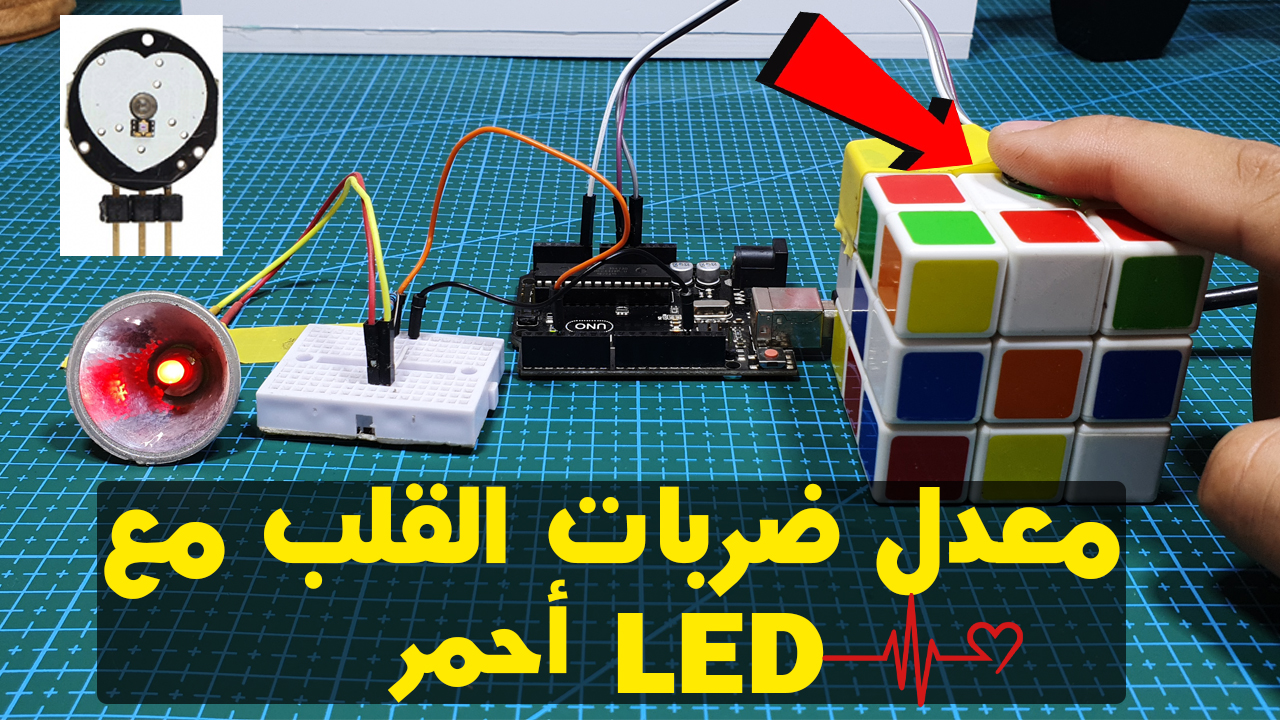

استشعار معدل ضربات القلب مع LED أحمر | pulse sensor arduino code with LED



مخطط الرسم البياني :

تحميل كود أردوينو هنا :

// Project : Arduino HeartbeatRate Sensor With LED

// By : DIY Channel / ABDELLATIF MIMOUNE

// My Youtube Channel : https://www.youtube.com/c/DIYChannel2019

int PulseSensorPurplePin = 0;

int LED_3 = 3;

int Signal;

int Threshold = 550;

//-------------------By:abdellatif mimoune-----------------------------------

void setup()

{

  pinMode(LED_3,OUTPUT); //--> Set LED_3 PIN as Output.

  Serial.begin(9600); //--> Set's up Serial Communication at certain speed.

}

//------------------------DIY CHANNEL---------------------------------------------

void loop()

{

  Signal = analogRead(PulseSensorPurplePin);

  Serial.println(Signal);

  if(Signal > Threshold){

    digitalWrite(LED_3,HIGH);

  } else {

    digitalWrite(LED_3,LOW);

  }

  delay(10);

}

//--------------------------YOUTUBE : DIY CHANNEL ---------------------------------
